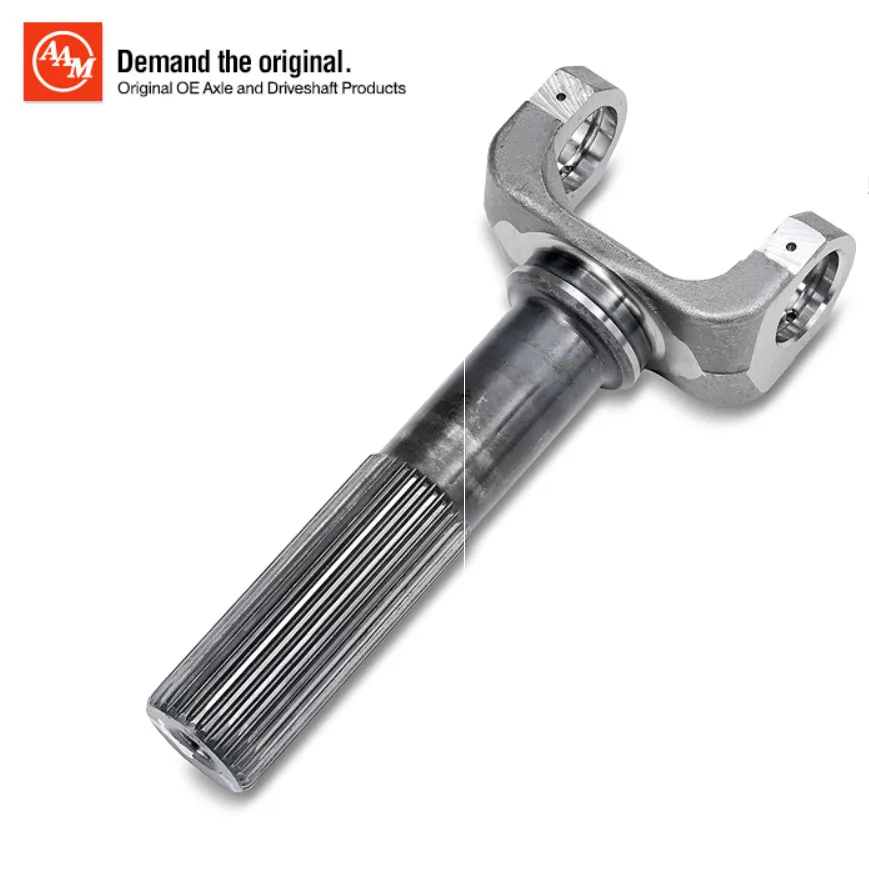

Driveshaft Yoke Shaft
1344/3R Series Ext. Spline Yoke - Used with GM K Series front prop
| Transmission & Transfer Case Applications: |
|
Fits the GM transmissions with 32 spline output shaft 8L90E. |
| Series: | 1344 (3R) |
| U-Joint Lock Up: | 2.556 Inch |
| Bearing Cap Diameter: | 1.125 Inch |
| Type: | Inside Snap Ring |
| Vehicle Make: | GM |
| Spline Count: | 32 |
| Spline Length: | 3.350 Inch (85.10 mm) |
| Spline Diameter: | 1.375 Inch |
| Nominal Tube Diameter: | 2.75 Inch X 0.059 Inch |
|
Overall Length: (Centerline to End) |
7.83 Inch (199.00 mm) |
| Shaft length: | 3.74 Inch (95.00 mm) |
| Shaft Width: | 1.75 Inch (44.50 mm) |
Compatible Parts:
AAM Boot Kit
Neapco Boot Kit
Neapco U-Joint
Alternate Part Numbers:
Neapco Yoke Shaft (Obsolete)
26060595, 12471638, 74086885, 808709924326
