Description
About KAKA Industrial: A Company Delivers High Quality Machines with Fast Shipment and Lowest Price Possible. We Always Fulfill What We Have Promised

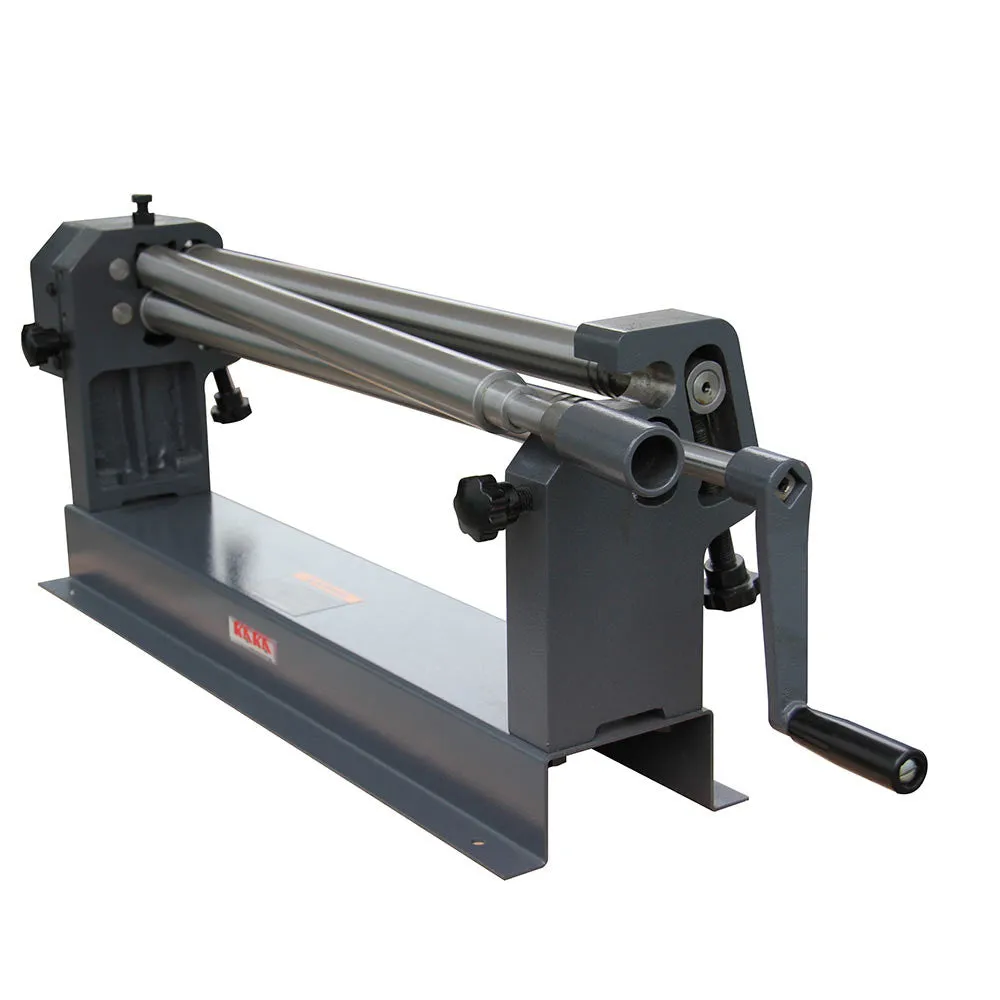

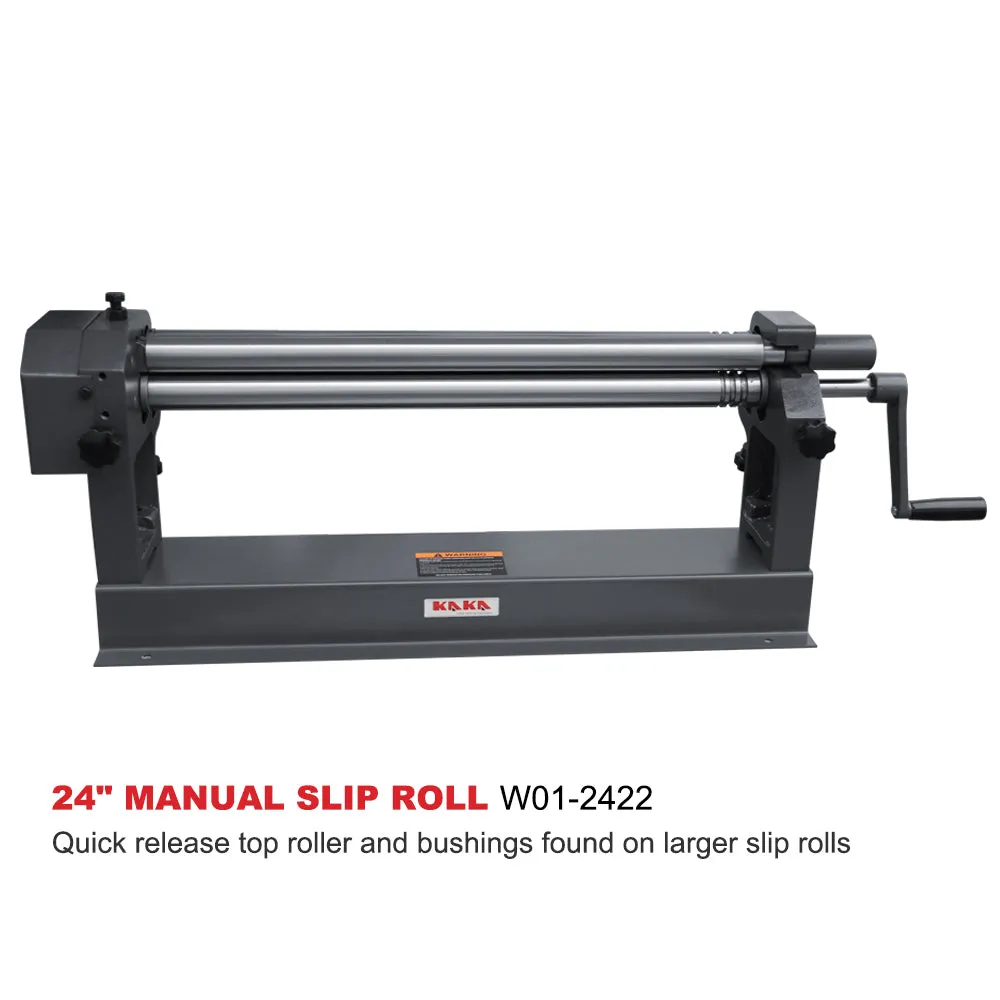

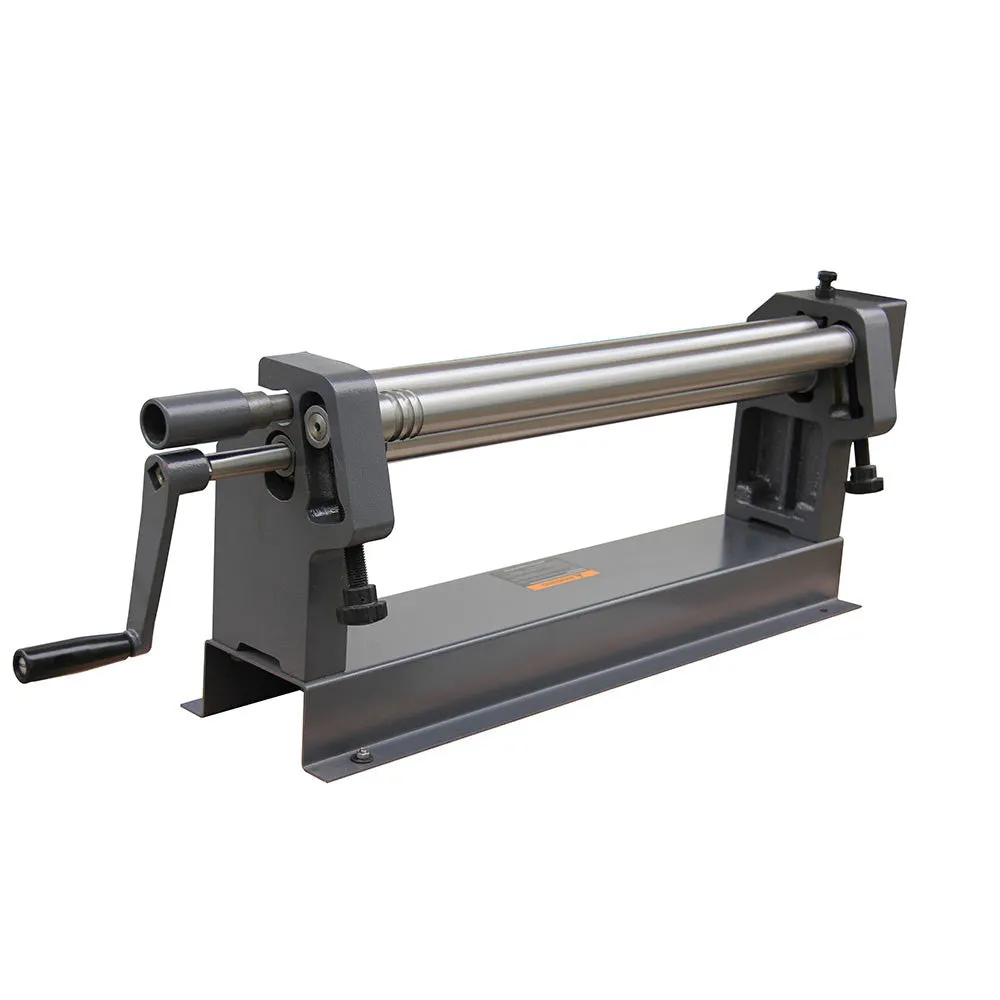

KAKA Industrial 24" Slip Roll Overview
KAKA Industrial 24" Slip roll machine can satisfy customers who want a little extra capacity over the 12" slip roll. Large handle crank and hardened, heavy-duty gearing give you the mechanical advantage to roll mild steel up to 22 gauges. The slip roll also features quick release top roller and bushings found on larger slip rolls.
Key Benefits of 24-Inch Slip Roll
1. Easy and manual operation.
2. Quick release top roller
3. Hardened steel gearing
4. High strength steel rolls
5. Precision ground cast iron roller
6. Top roll swing out
7. Lower roll adjustment with adjustment lever and cam
8. The processing capacity of the slip roll machine ranges from 305mm to 1300 mm

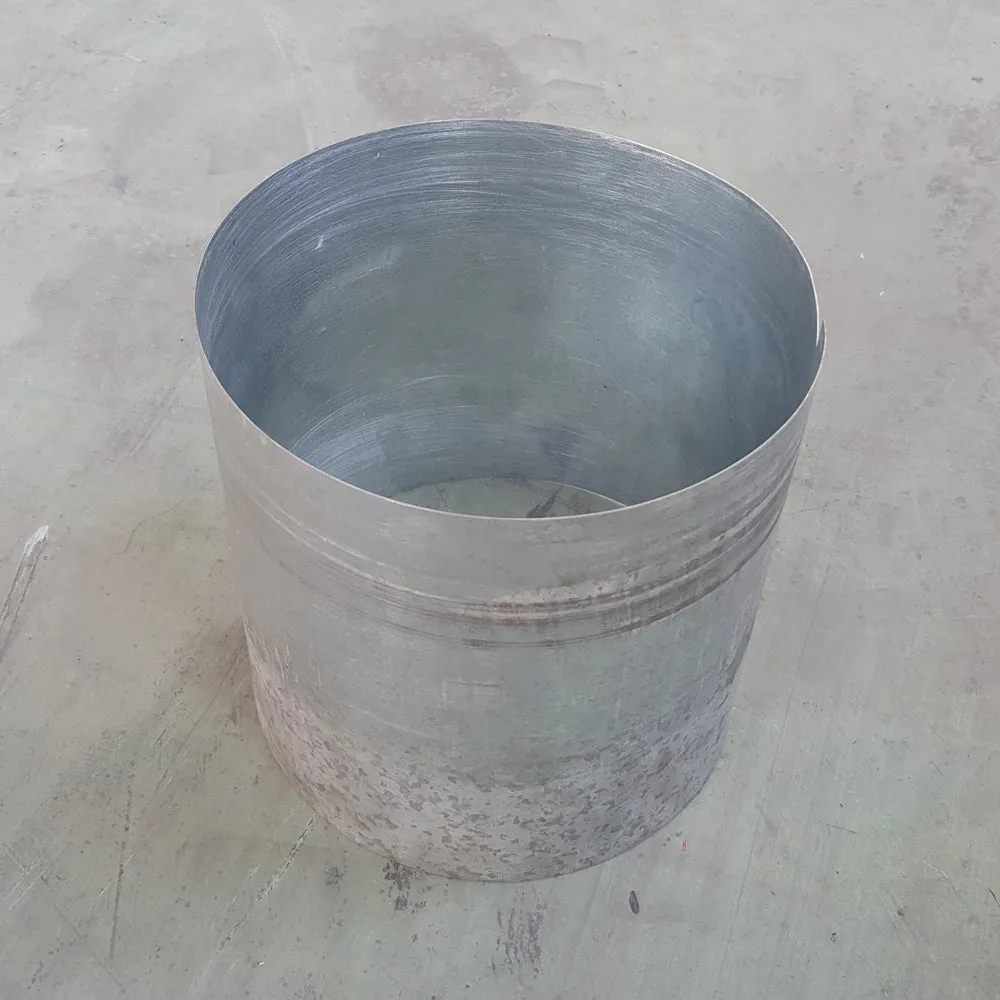

9. Our slip roll machine not only reels but can also cone the materials
10. Our slip roll machine can roll the round bar steels whose specifications are ￠6, ￠8, ￠10 and so on.
11. The upper axis of our slip roll machine can be easily pulled out in order to take out the processed work piece
Specification:
|
ITEM NO. |
Model |
Max.thickness |
Max.width (in) |
Dia.of roll(in) |
Packing dimension (in) |
N.W./G.W.(lb) |
|
174002 |
W01-2422 |
22gauge |
24" |
1-1/2" |
37-1/2x10-3/4x15 |
81/88 |
For smaller businesses, the W01-2422 slip roll machine is a practical and affordable option. This manual slip roll machine has a cam-lifting top roll and finely turned rolls and gears. The bottom and back rolls also include wire grooves. Easily adjusted to produce distortion-free, perfectly straight cylinders, this model looks and performs like a high-end commercial version.
